1.5 HP Irrigation Motor

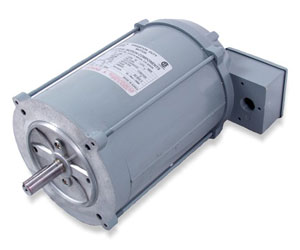

UMC 1.5 HP Irrigation Duty Centre Drive Motor. This vertical mounted 360 Volt Nema 56 C–Face Motor is to be used in conjunction with the vertical mounted UMC CD1 speed reducing gearbox.

It is recommended the UMC 1.5 HP Centre Drive Motor to be used in conjunction with UMC Final Wheel Drive Gearboxes and UMC Drive Line Couplers for optimal performance and product life.

Evaluation Specifications

  • ISO–9001:2000 Certified
  • All critical electrical connections are encapsulated to resist penetration of moisture.
  • Specially designed to NEC and NEMA specs for rugged irrigation duty.
  • 460/380 3 Phase, 60/50 HZ dual voltage, 1725 RPM (60 HZ), 1475 RPM (50 HZ).
  • Thermally protected; automatic reset.
  • Internal fin cooled.
  • Heavy duty bearings.
  • Designed for soft starts.
  • High torque performance.
  • C.S.A. approved.
  • Totally enclosed light weight easy to access top junction box.
  • Minimal AMP draw: full load current at rated voltage, 2.3 AMPS.
  • .625 shaft diameter with key and standard NEMA 56–C face bolt pattern.
  • Class F rated insulation.
  • One year limited warranty.
  • Each motor hi–pot tested.
