Bolt on Towable Hub

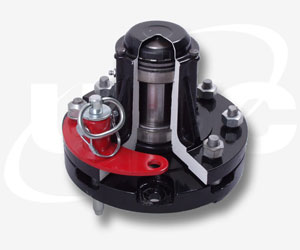

UMC BT4–B Tow Hub converts any standard eight bolt final drive gearbox into a towable gearbox. Heavy Duty and extended length design provides greater bearing spacing allowing increased load requirements.

It is recommended the BT4–B Tow Hub be used in conjunction with UMC Final Drive Gearbox, UMC Centre Drive Gear Motors and UMC Drive Line Couplers for optimal performance and product life

Evaluation Specifications

ISO–9001:2000 Certified NEW: Extended length design provides greater bearing spacing, allowing for increased load requirements Converts standard centre–pivot final drives into towables. Bearing pre–load is set using a SAE lock nut and washers. Tow Pin Kit sold separately

Heavy duty cast steel shaft and cast iron hub. Grease and pressure relief fittings included. Bolt –in hub cap secured with three 1/4–20 bolts and sealed with silicone RTY.
