C–Face Gearbox

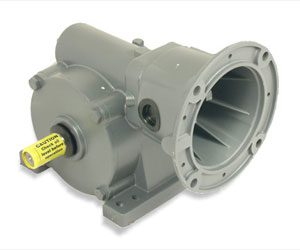

UMC CD1 Centre Drive Gearbox. This vertical mounted speed reducing gearbox is to be used in conjunction with UMC's vertical mounted 1.5 HP Centre Drive Motor.

It is recommended the CD1 Centre Drive Gearbox to be used in conjunction with UMC's Final Drive Gearbox, 1.5 HP Motor and UMC Drive Line Couplers for optimal performance and product life.

Available in 30:1 and 50:1 ratios

Evaluation Specifications

  • ISO–9001:2000 Certified
  • Precision die cast tempered aluminum housing.
  • Includes easy to install shock absorbing motor to gear box coupler.
  • Accepts NEMA 56–C face motors with 5/8" shafts, 2" long wit h .19 key slots.
  • Multiple mount plate bolt patterns 5" x 6"; 3 3/8" x 6 3/8".
  • Ample oil fill , drain and level, threaded plug holes.
  • Shipped with oil.
  • High strength aluminum bronze bull gear.
  • Includes special external crop guard seals.
  • Painted for added corrosion resistance.
